HLNA-144-PGA103

Low noise amplifier for 144 MHz with PGA103

Active element: PGA103+

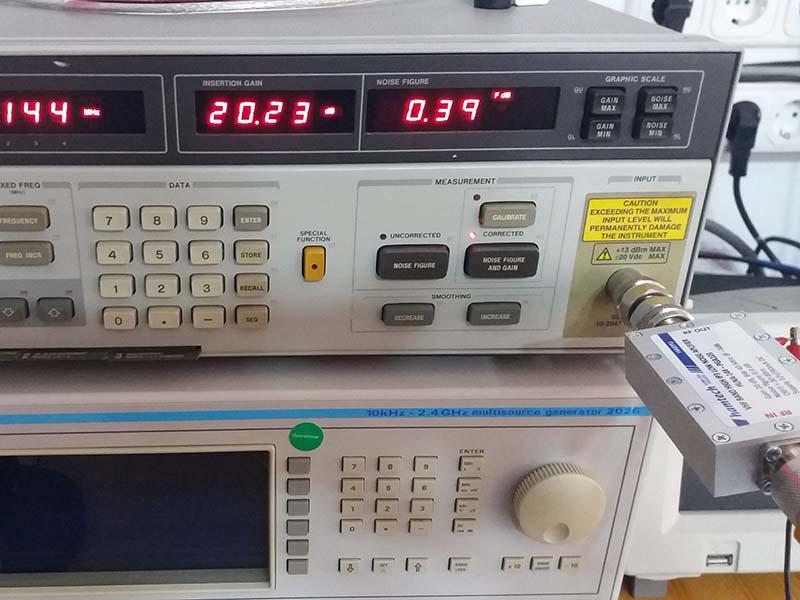

Gain: 20dB
Noise figure: 0.4dB
OIP3: >30dB
DC voltage: 12V
DC current: 90mA
Impendance: 50Ohm
RF connectors:
Case: Milled aluminium
Pdf_document: Open
Dimensions: 72(with connectors: 110)x43x20 mm
Weight: 0.0 kg
Price: Login for price
