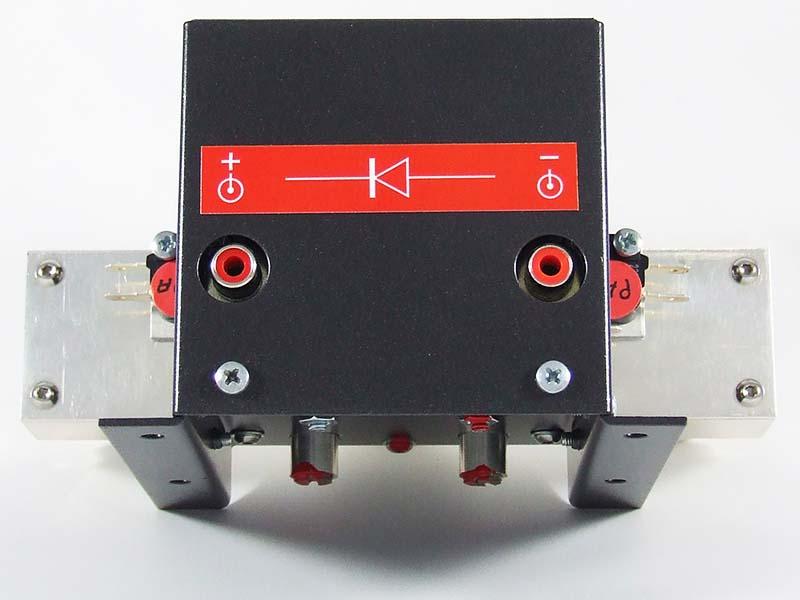

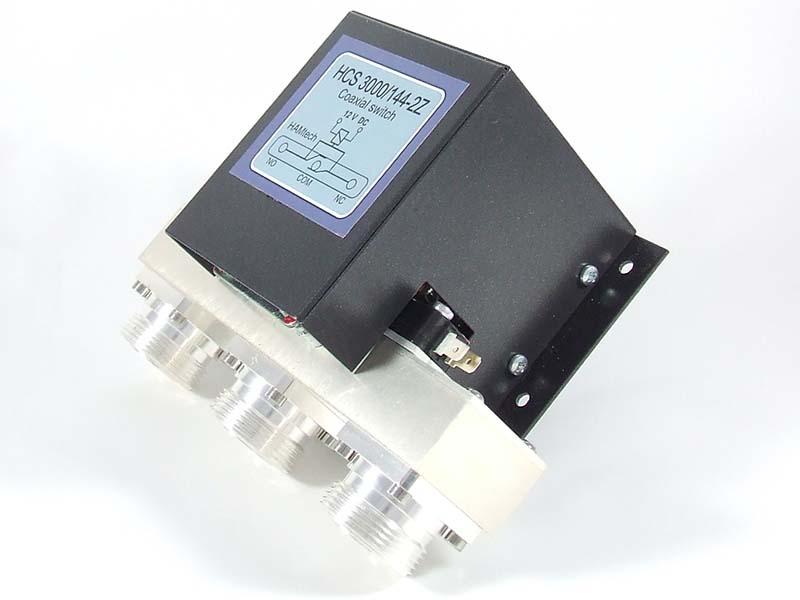

HCS3000-144-2Z
High power coaxial relay with 7/16 connectors and auxiliary contacts
| Frequency range: | DC up to 1.5GHz |
|---|---|
| Impendance: | 50Ohm |
| Max power: | 3kW CW/144MHz |
| Insertion loss: | See documentation and diagram below |
| Isolation: | See documentation and diagram below |
| Contact materials: | AgCu3, gold plated |
| Supply voltage: | 12-13.8VDC |
| Supply current: | 0.72A @ 20°C |
| Connectors: | RF: 7/16(f) |
| Switching time: | approx. 40ms |
| Additional contacts: | 2pcs |
| PDF document: | Open |
| Dimensions: | 150x115x75mm |
| Weight: | 1.6 kg |
| Price: | Login for price |
